Our  PC/104 Single Board Computer modules measure 96 x 90 mm. The series includes various CPU modules for different applications and a variety of PC/104 add-on peripheral modules. PC/104 modules feature a compact form factor, low power consumption, and PC/104, PCI-104, PC/104 PCMCIA module or PC/104-Plus expansion with extended temperature options. They offer a wide range of computing capacities from ultra low power 5 Watt SOC, to the latest Intel Atom processors. Advantech is a PC/104 Consortium associate member and worldwide number one PC/104 stackable solution leader. PC/104 products are ideal for space limited or extended temperature applications.

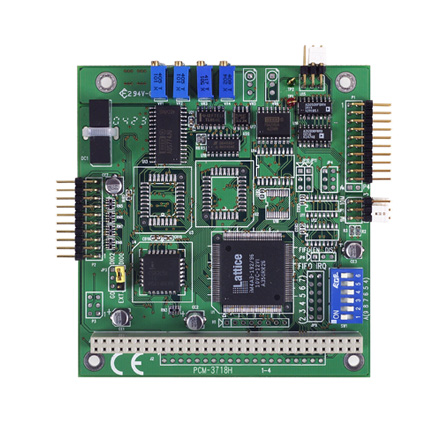

PCM-3718H

PCM-3718H

100 kS/s, 12-bit, 16-ch Multifunction PC/104 Module 16-ch digital input/output TTL level and 1-ch 16-bit counter 12-bit A/D converter, up to 100 KHz sampling rate wit...

Read More

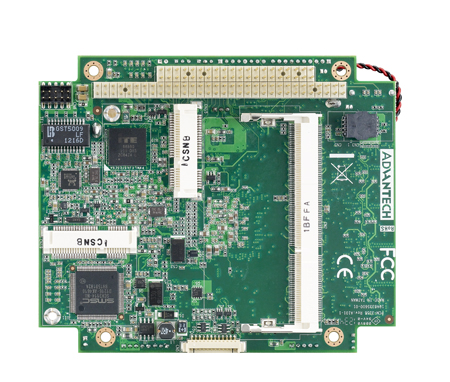

PCM-3356

PCM-3356

AMD T16R PC/104 SBC, VGA, LVDS, LAN,USB, COM, SATA AMD® G-Series™ Processor T16R 615 MHz Supports up to 4 GB DDR3 SODIMM Supports 18-bit LVDS and VGA ...

Read More
PCM-3718H

PCM-3718H

16-ch digital input/output TTL level and 1-ch 16-bit counter 12-bit A/D converter, up to 100 KHz sampling rate with DMA transfer 16-ch single-ended or 8-ch diffe...

Read More
PCM-3718HG

PCM-3718HG

16-ch digital input/output TTL level and 1-ch 16-bit counter 12-bit A/D converter with high gain, up to 100 KHz sampling rate with DMA transfer 16-ch single-ende...

Read More
PCM-3363

PCM-3363

Intel® Atom™ N455/D525 PCI-104 SBC, VGA, LVDS, Ethernet, USB, COM, SATA, Onboard Memory Intel® Atom N455 1.66 GHz Single Core/D525 Dual Core 1.8 GHz Processor...

Read More
PCM-3718HO

PCM-3718HO

100 kS/s, 12-bit, 16-ch Multifunction PC/104 Module with Analog Output 12-bit A/D converter, up to 100 KHz sampling rate with DMA transfer 16-ch digital input/output ...

Read More
 PCM-3343

PCM-3343

DM&P Vortex86DX-800MHz PC/104 SBC, LCD, Ethernet, CFC, Onboard Memory Ultra low power, fanless DM&P Vortex86DX- 800MHz and 256 MB onboard DDR2 memory VGA+LCD ...

Read More
PCM-3724

PCM-3724

48-ch Digital I/O PC/104 Module 48 TTL digital I/O lines Output status read-back Channels simulate 8255 PPI mode 0 Interrupt triggering, rising/falling ed...

Read More
PCM-3725

PCM-3725

8-ch Relay and Isolated Digital Input PC/104 Module 8-ch relay actuators output Opto-isolated 8-ch digital input LED indicators to show activated relays O...

Read More
PCM-3730

PCM-3730

16-ch Isolated Digital I/O PC/104 Module High output driving capacity and high-voltage isolation Opto-isolated eight DI and eight DO channels Interrupt capabili...

Read More
PCM-3730I

PCM-3730I

32-ch Isolated Digital I/O PCI-104 Module Compact size with robust design High-voltage isolation on both input and output channels (2,500 VDC) High output drivi...

Read More
PCM-3753I

PCM-3753I

96-ch Digital I/O PCI-104 Module Compact size with robust design Supports dry/wet contact Keeps the last output value after system hot reset Interrupt han...

Read More
PCM-3761I

PCM-3761I

8-ch Relay and 8-ch Isolated Digital Input PCI-104 Module 8 Form C type relay output channels Retained relay output values when hot system reset High-voltage is...

Read More
PCM-3780

PCM-3780

2-ch Counter/Timer with 24-ch DI/O PC/104 Module 2 independent 16-bit counters

Read More
PCM-3810I

PCM-3810I

250 kS/s, 12-bit, 16-ch Multifunction PCI-104 Module 16-ch single-ended or 8-ch differential A/D input, switch selectable 12-bit A/D converter, up to 250 kHz sampling...

Read More
PCM-3813I

PCM-3813I

100 kS/s, 12-bit, 32-ch Isolated Analog Input PCI-104 Module 32 single-ended or 16 differential analog inputs 12-bit A/D converter, with up to 100 kHz sampling rate ...
