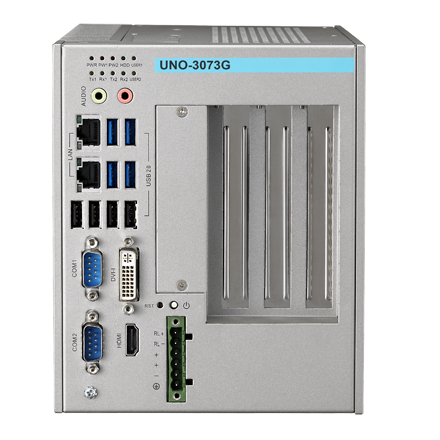

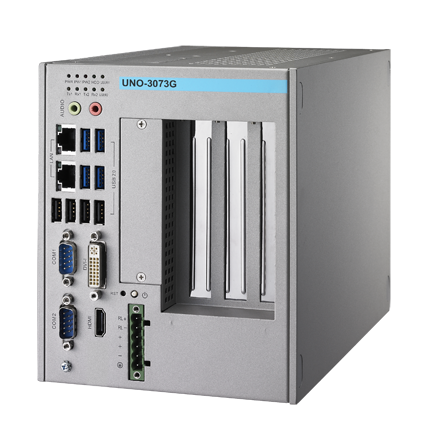

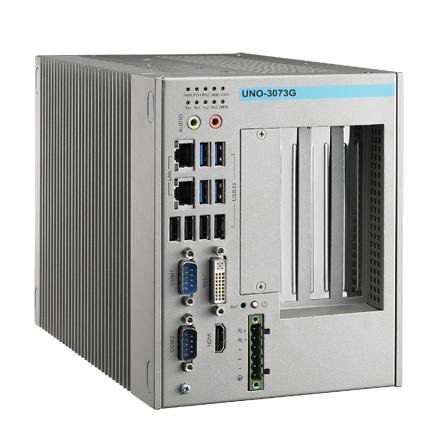

Intel Core i7/Celeron 800 series Automation Computers with 3/5 PCI(e) expansion slots, 2 Mini PCIe slots and 2 CFast sockets

• Onboard Intel Core i7-3555LE/i7-2655LE/Celeron 847E/807UE, 2.2GHz/1.1GHz/1.0GHz
• 2 x RS-232/422/485 ports with automatic flow control and 2 x RS-232 pin head reserved
• 2 x 10/100/1000Base-T Ethernet
• DVI-I, HDMI support 2 x independent displays
• Audio with Mic in, Line out
• 9 x USB ports (1 x internal USB for dongle and flash drive)
• Windows® WES 2009, WES 7/8 ready solution
• Dual power input for power redundancy
• Onboard system diagnosis LED indicators
• Supports wake on LAN and boot from LAN function
• Isolation between chassis and power ground
• Front accessible dual HDD/SSD with onboard RAID 0/1 support
