ARK-2120F

Product Files

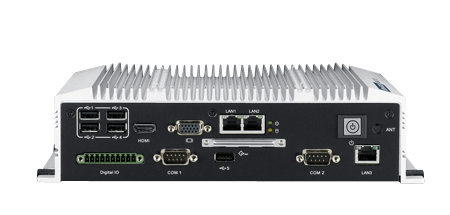

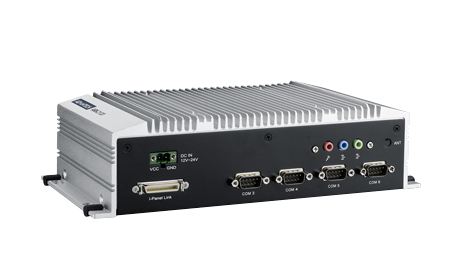

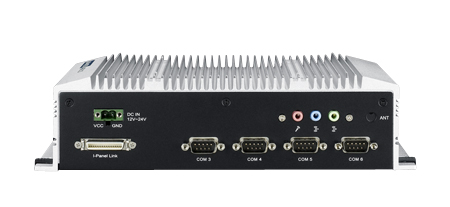

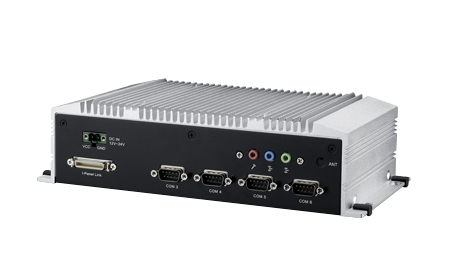

Intel® Atom™ N2600/D2550 High Value Fanless Embedded Box PC with 3 GbE and 6 COM

  • Intel® Atom™ N2600 1.6 GHz/D2550 1.86 GHz Fanless Embedded Box PC, DDR3 memory supports up to 4 GB
  • VGA, HDMI, 48-bit LVDS, support dual independent display and DirectX 9
  • Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN
  • Supports up to 3 x GbE, 5 x USB 2.0 and 6 x COMs portsƒƒ
  • Supports external CFast socket and 1 x 2.5" HDD drive bay
  • Supports 12 ~ 24V wide range DC input
  • Supports iManager, SUSIAccess and Embedded Software APIs
  • IP40

BSMI  CCC Logo  CE Logo  UL
