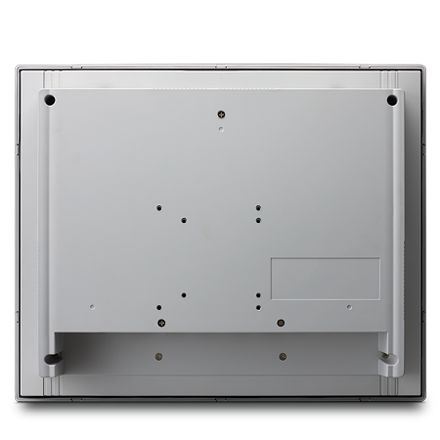

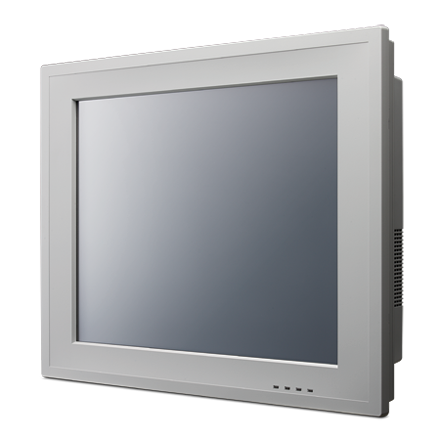

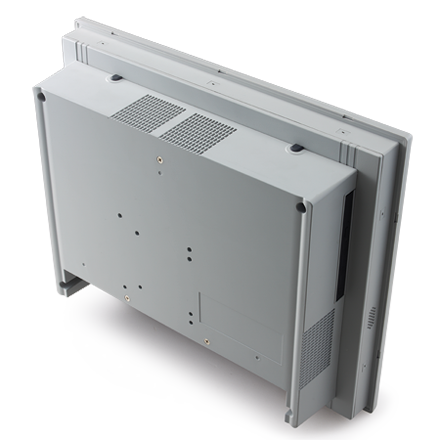

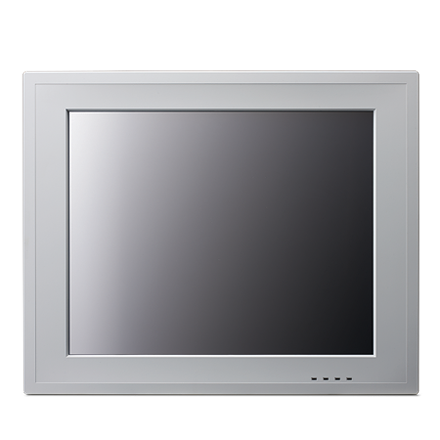

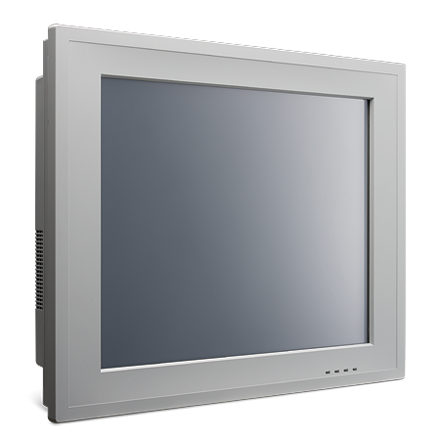

17" Panel PC with Intel® Core™ i3 / i5 / Celeron® Processor

• Intel® Core™ i3, i5, Celeron 847E and 1020E + Intel QM77 PCH
• 1X DDR3/DDR3L SODIMM support to 8 GB

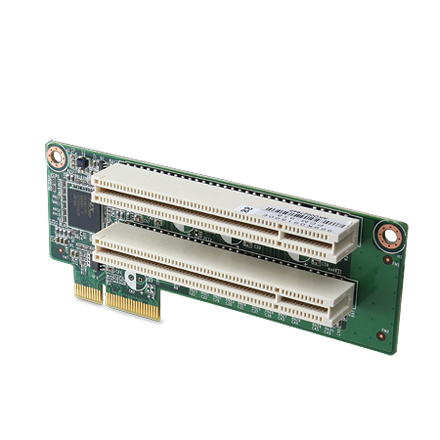

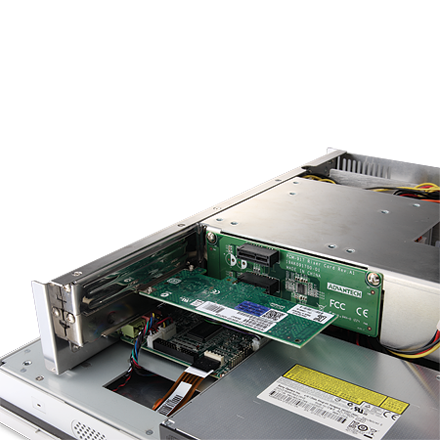

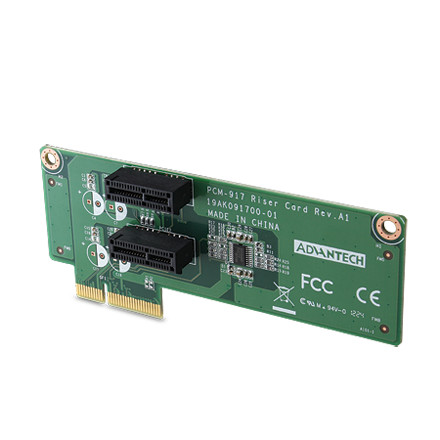

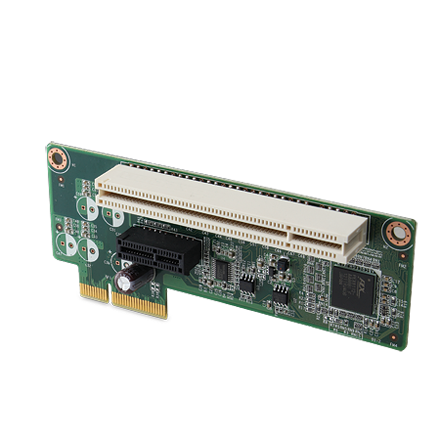

• Multiple expansion slots including one PCIe x4, one PCI + one PCIe x1, two PCI (optional) and two PCIe x1 (optional)

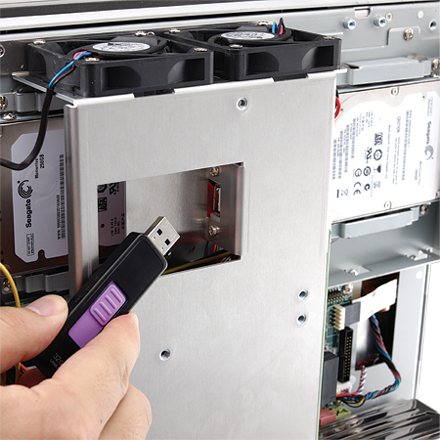

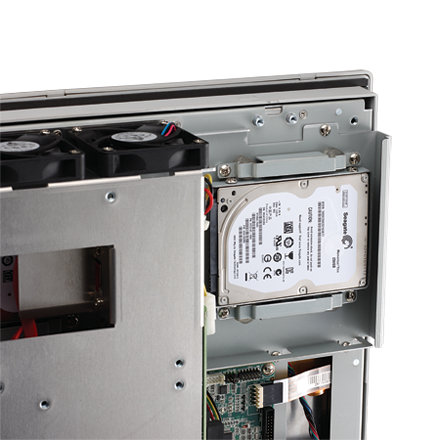

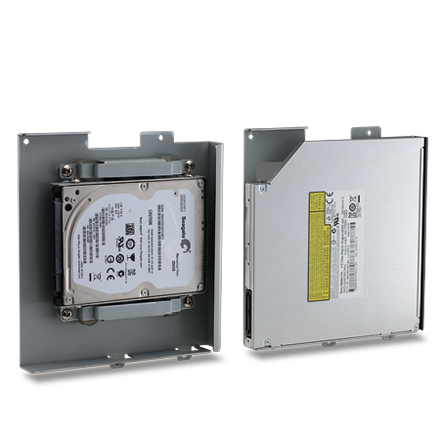

• Optional second HDD, supports Intel RAID

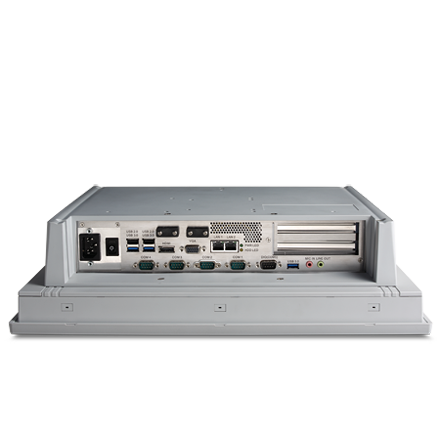

• One isolated RS-232/422/485 port; (selectable in by BIOS)
• One GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)
• Dual GbE, supports Intel AMT8.0
• Supports iManager, SUSIAccess and Embedded Software APIs
