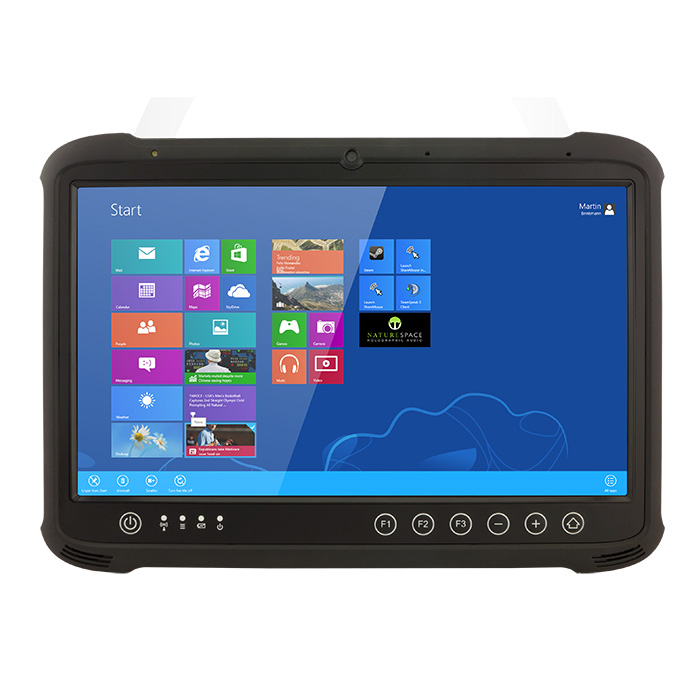

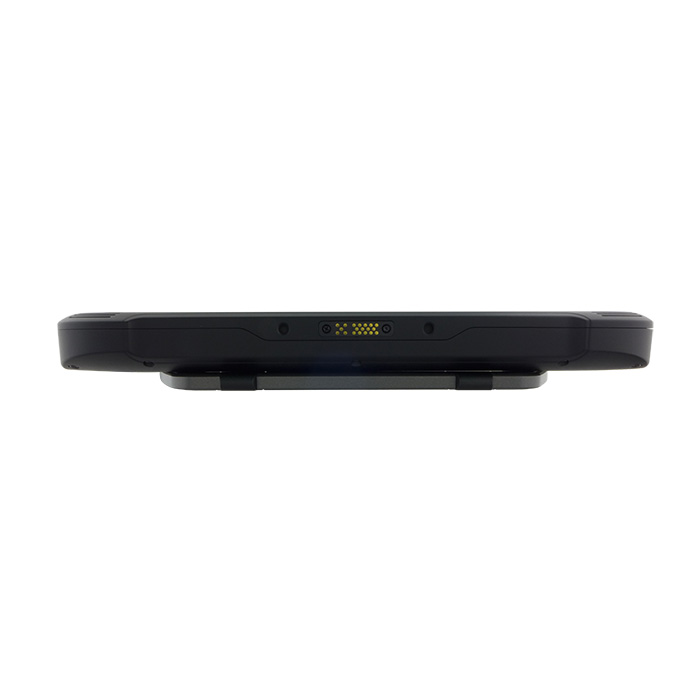

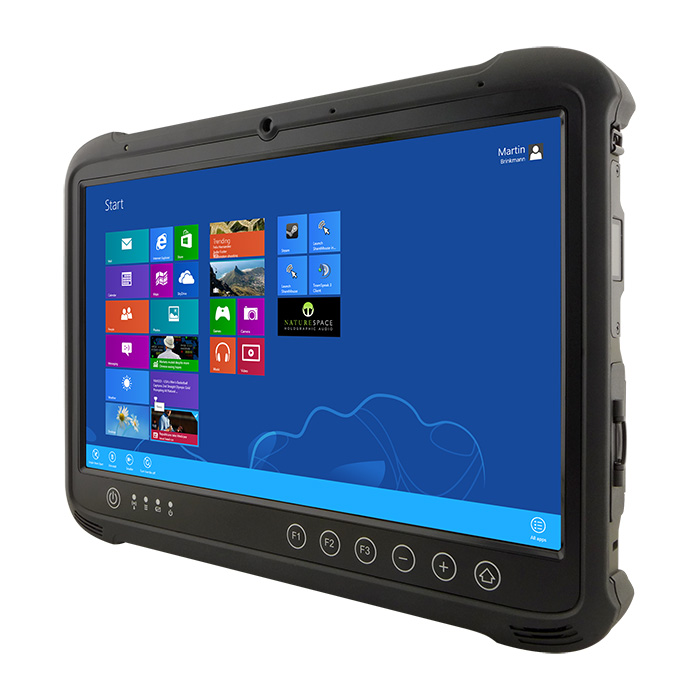

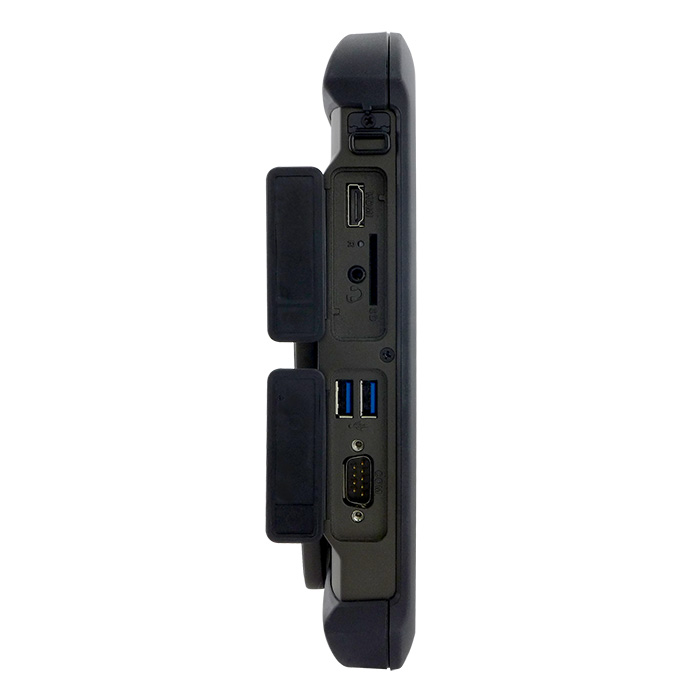

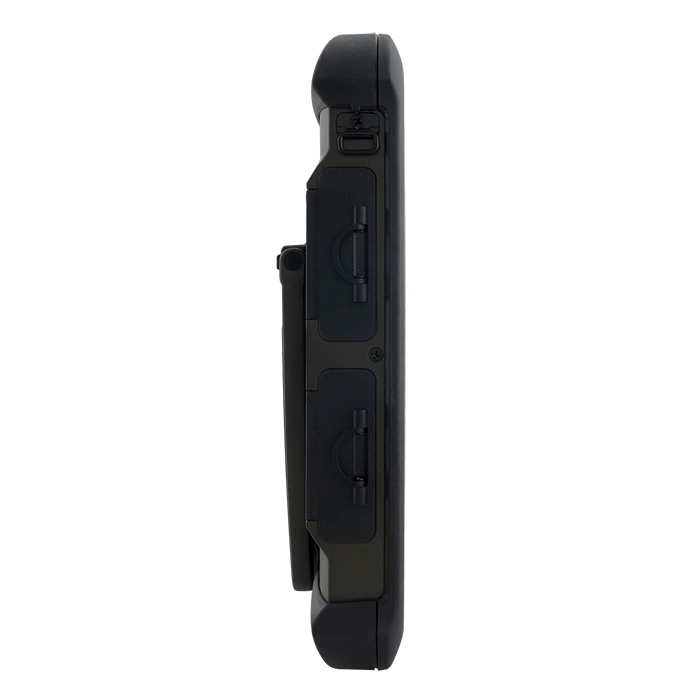

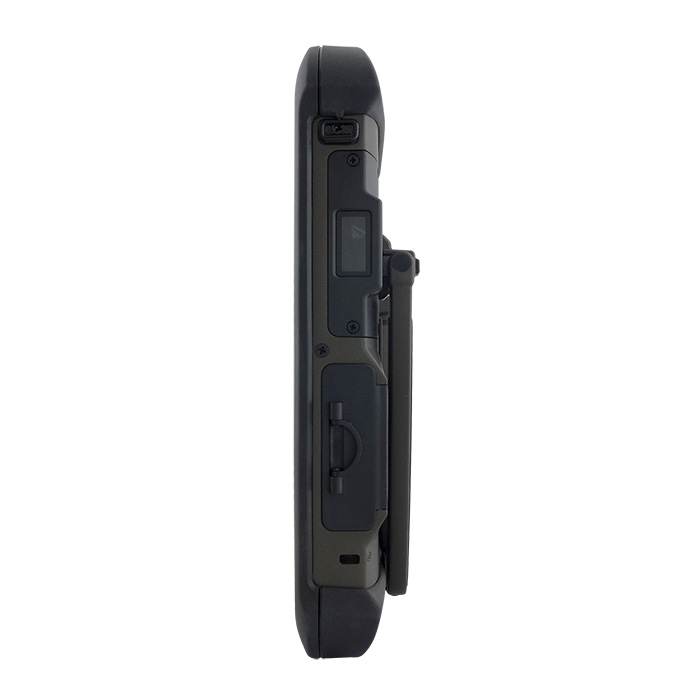

13.3" Rugged Tablet

The new 13.3"  rugged, mobile tablet. The elegant, yet fully rugged 13.3" offers the larger screen size of laptop in a tablet form factor for increased visibility and computing in demanding environments such as automotive manufacturing and vehicle diagnostics. Weighing less than a laptop at 5.3 pounds (approx. 2.4 Kilograms), the 13.3" Rugged Tablet delivers lightweight mobility in a rugged tablet. It is also equipped with a hot-swappable battery for uninterrupted operation, and features robust data capture with 1D/2D barcode scanner or Smart card reader on the side Option Port location. On top of the Barcode scanner and Smart card reader, another HF RFID reader can also be optioned-in on the front of the tablet independently. Protected against water, extreme temperatures, shock and dust, the 13.3" Rugged Tablet offers a highly durable solution, enabling its use in even the most challenging environments.




M133W


Panel_Size  : 13.3-inch
Panel_Display Resolution  : 1920x1080
Processor  : Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz)
Memory  : 4GB SODIMM DDR3L-1600 (up to 16GB)
Storage  : 1 x 128GB M.2 MLC SSD (up to 1TB with 2 x SSD)
2 x Internal M.2 slots


STANDARD ACCESSORIES:



Adapter and Power Cord
  • 100-240VAC to 19VDC@3.42A
  • Country specific power cords available

Adapter and Power Cord

Stylus
  • Length: 120mm

Stylus

Standard Battery (BS133)
  • 7.4V / 10280 mAh Li-Polymer Battery, 2S2P
  • Dimensions: mm
  • Weight: g

Standard Battery (BS133)

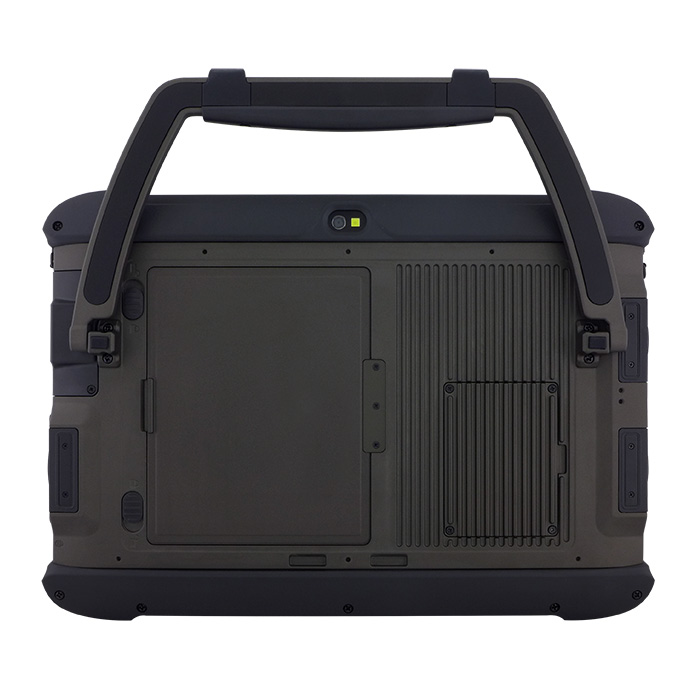

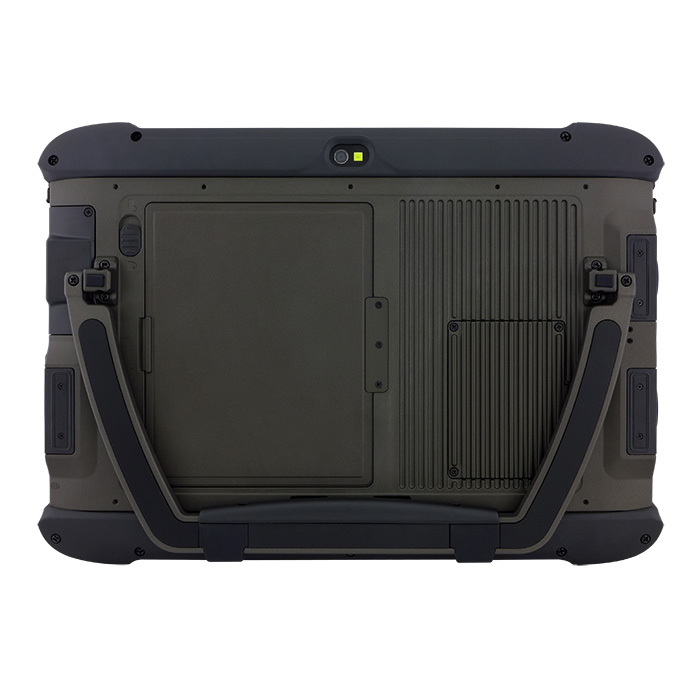

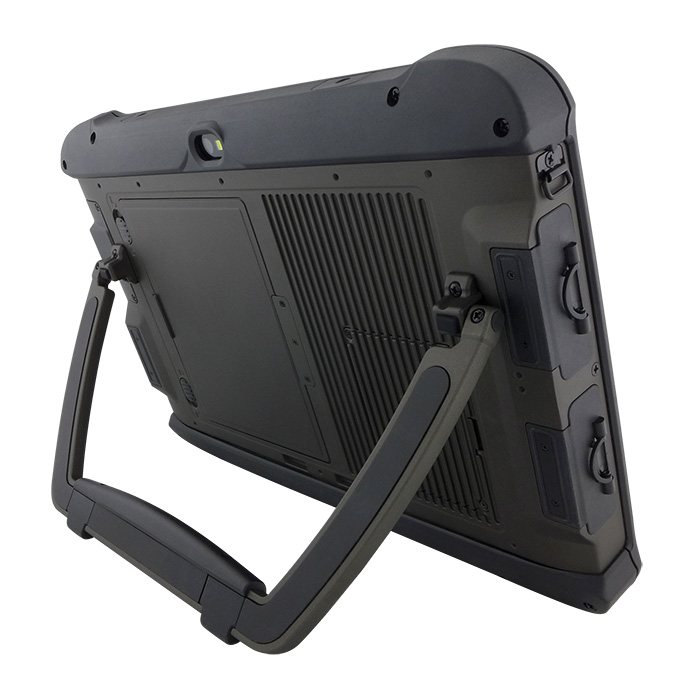

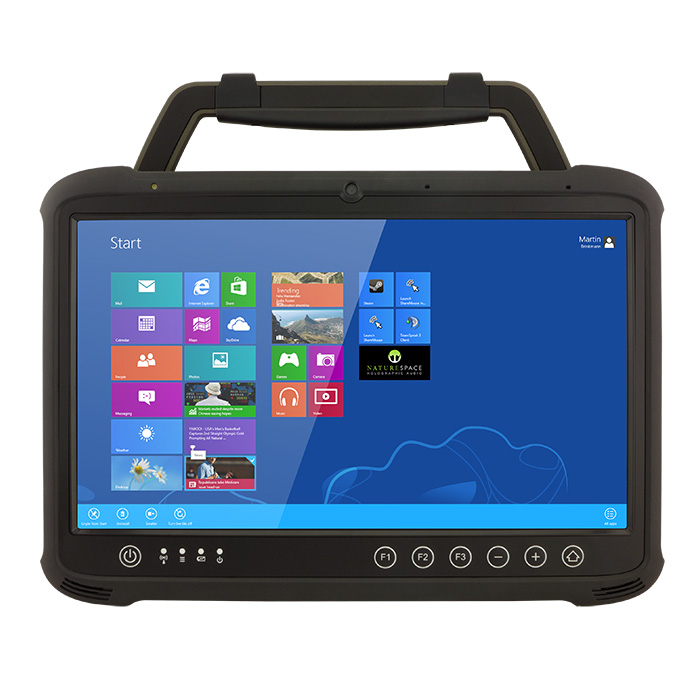

Stand with Integrated Handle
  • Metallic stand with rubberized protection pads to prevent slipping
  • Free rotating with 180 degrees of adjustability
  • Function as an integrated carrying handle when rotated up

Desk Dock



OPTIONAL ACCESSORIES:

VESA Mounting kit



  • Model Name: MX20
  • Print width: 1.89-inch(48mm)
  • Drop & Fit label installation design
  • IP54 water / dust resistant and 1.5M shock resistant
  • Supports both wire (RS232 and USB ports)
  • Long standby time up to 72 hours or 300 label cycles between charges

VESA Mounting kit

Shoulder Strap



  • Adjustable cross-body strap (cm) with pad
  • Weight: g

Shoulder Strap

Mobile Printer
Mobile Printer



  • Model Name: MX20
  • Print width: 1.89-inch(48mm)
  • Drop & Fit label installation design
  • IP54 water / dust resistant and 1.5M shock resistant
  • Supports both wire (RS232 and USB ports)
  • Long standby time up to 72 hours or 300 label cycles between charges





Battery Charger
  Battery Charger



  • Dual-bay charging dock
  • Power level LED indicators
  • Buzzer to indicate battery is inserted
  • Supports up to 3 set of dock interconnected
