Project Title : Power and Energy Monitoring

Required : The customer has 12 power stations , he needs to monitor the power and power consumption of the stations .

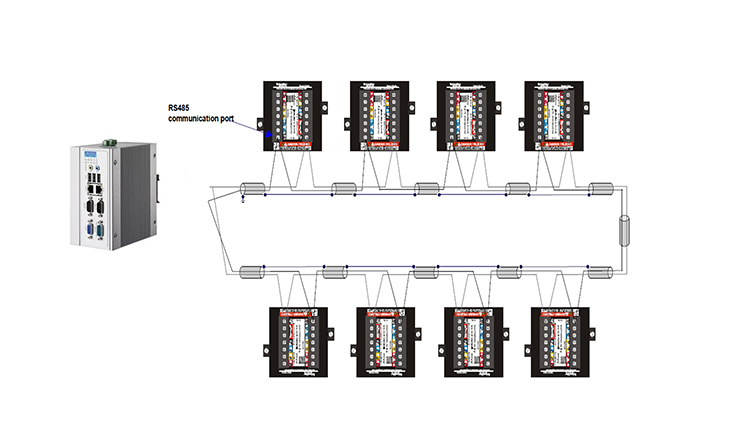

The customer used 12 schneider  Power meter (PM-1200) , ADAM-4520 and UNO1170A , and we made software for logging and display all the electrical components.

System Implementation :

Product	Specification
UNO-1170A	Intel® Atom™ N270 DIN-rail PCs with 2 x LAN, 3 x COM, 4 x USB, PC/104+
ADAM-4520	Isolated RS-232 to RS-422/485 Converter
PM-1200	Schneider Power meter

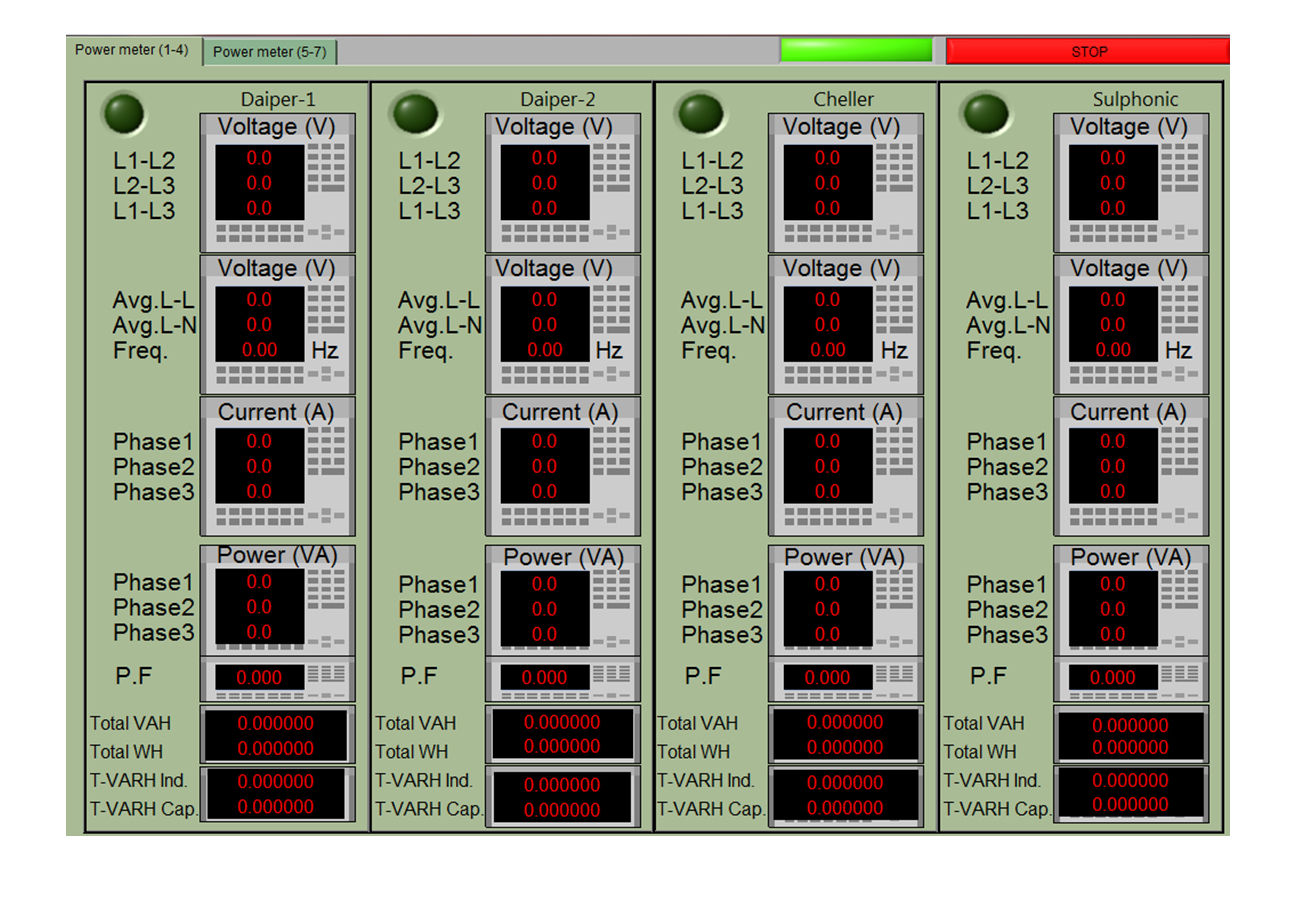

Software	Logging and display software

Conclusion:

By using this project , the customer will get excel sheet for the power consumption and all electrical components , so he will have history for the 12 station , he can check it at any time.
